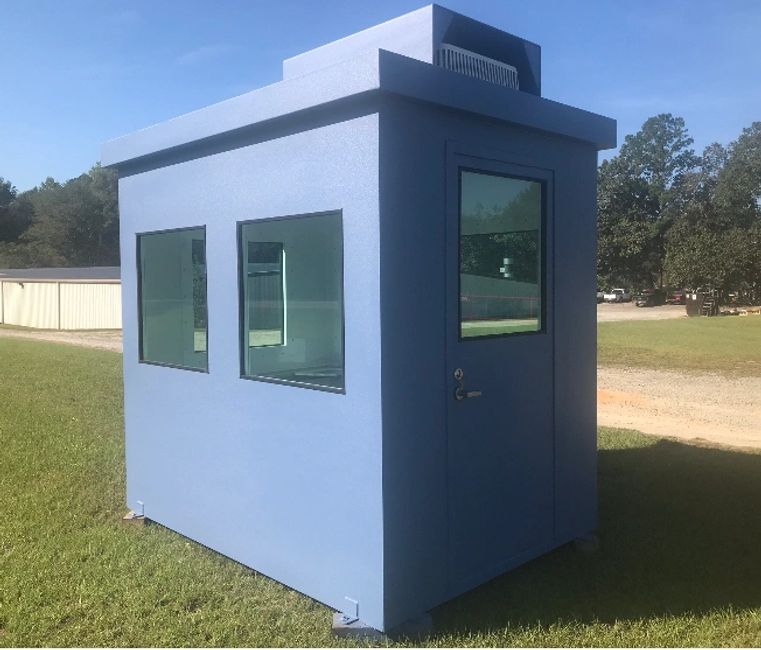

GUARD BOOTH

Additional Information

• Preassembled, designed and structurally engineered. Steel mechanical square tubing framework meets ASTM-A500 standards.

• Prefabricated as specified by the UFGS Specifications, section 13.34.21.

• FRP interior panels fabricated and insulated to a minimum R-12. All joints pressure sealed against any weather intrusion.

• Heavy duty hinged doors with full length hinge. Doors come with heavy duty hardware, keyed lock and weather stripping.

• Non-slip flooring for safety. Anti-fatigue mats can be provided upon request.

• Rust inhibitive high build epoxy primer and urethane finish coat. Custom designs and colors are available.

• 13500 BTU Heating and Cooling, roof mounted unit. Bullet resistant shroud covering HVAC system available for ballistic rated models.

• Two 20 amp, 120 volt, GFI duplex wall outlets.

• Pre-wired electrical power service in accordance with U.L. and NEC standards for quick and easy installation on the project site. 100 amp, 120/240 volt, three wire, single phase, 8-16 circuit breaker panel.
